JWD3J Dell B25 Drop-In Stab-In Tool-Less Sliding Rail Kit for PowerEdge R760xa

JWD3J Dell B25 Drop-In / Stab-In Tool-Less Sliding Rail Kit for PowerEdge R760xa

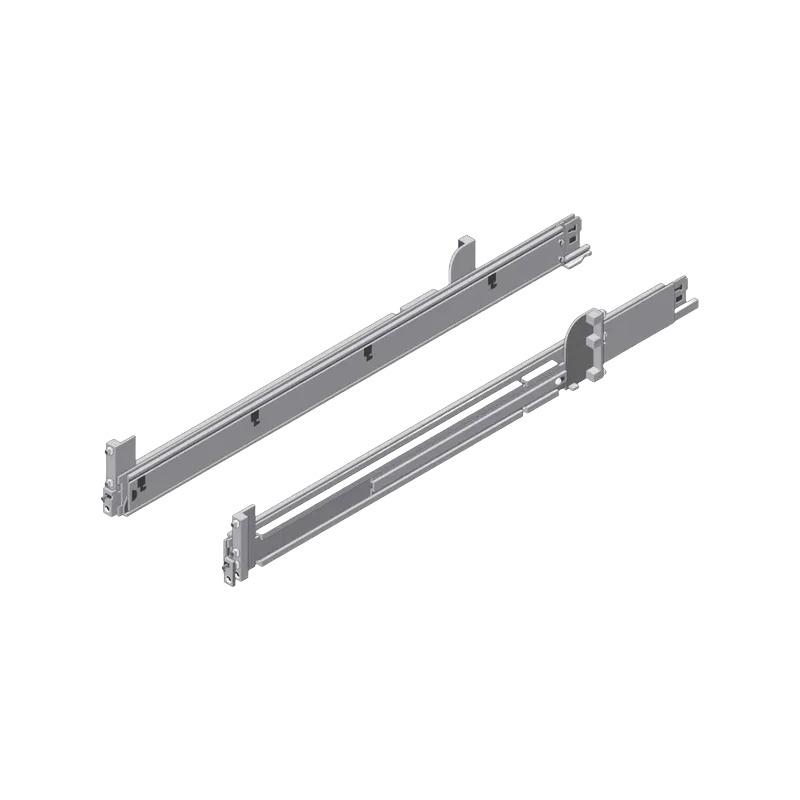

Genuine Dell B25 sliding rail kit, the rack-mount solution matched to the PowerEdge R760xa 2U GPU server. The B25 is a tool-less drop-in / stab-in design: the inner rails fasten to the chassis and the outer rails clip into a 4-post square-hole rack without screws, so a heavy GPU-loaded 2U can be seated by hand. Being a sliding kit rather than static, the server can be drawn fully forward on its rails for service access to the front accelerators, fans and drive bays without unracking it.

Specifications

Compatibility

Dell rail kits are keyed to a specific chassis series — a kit is not interchangeable across PowerEdge models even at the same rack height. The B25 kit is the R760xa kit; the R760 (non-xa) uses the B22 kit, and they are not substitutes. Confirm your rack is 4-post with square holes: round-hole and threaded racks require an adapter. A sliding kit is required if you intend to service the server in place; a static kit cannot extend. Cable Management Arm, where used, is ordered separately and must match the rail series.

Recommended Use

Suited to rack-mounting the PowerEdge R760xa in data centre and enterprise racks where front-accelerator and fan serviceability without unracking is required.

Tested & shipped worldwide from ICD, Cairo, Egypt. All parts are tested, inspected, and backed by ICD's quality guarantee.
