PN: DL560-G9-24SFF-2U

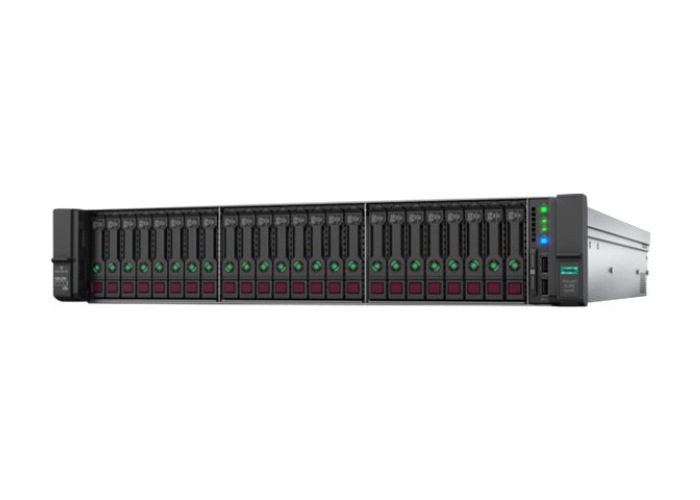

HPE ProLiant DL560 Gen9 24-Bay SFF 2U Rack Server

ICD Verified — Tested & Warranted
Price Match Promise — Found it cheaper? We'll match it.

Price on request

HPE Server System — Part #DL560-G9-24SFF-2U
Compatible with HPE ProLiant servers. Tested & quality guaranteed.

The HPE ProLiant DL560 Gen9 is a high-density four-socket 2U rack server powered by Intel Xeon E5-4600 v3/v4 processors with up to 22 cores per socket. It supports up to 3TB DDR4-2400 memory across 48 DIMM slots and provides up to 24 SFF or 12 LFF drives with optional 6 NVMe PCIe SSDs. Designed for mission-critical applications, ERP, and large database workloads requiring four-socket density in a compact 2U form factor.

Specifications

  • CPU Sockets: 4
  • Processor Support: Intel Xeon E5-4600 v3/v4
  • Memory Slots: 48
  • Memory Type: DDR4-2400
  • Max Memory: 3072 GB
  • Drive Bays: Up to 24x SFF or 12x LFF, 6x NVMe optional
  • PCIe Slots: 6x PCIe 3.0
  • Power Supply: 2x 1200W/1400W redundant
  • Form Factor: 2U Rack
  • Generation: Gen9 (2015)
  • Dimensions: 8.74 x 44.55 x 74.93 cm (3.44 x 17.54 x 29.5 in)
  • Weight: 28.0 kg
