Best Parts for Dell PowerEdge R860
Complete compatibility guide for the PowerEdge R860 (16G). The parts listed are the component families ICD lists for the PowerEdge R860; part-level fit is confirmed on every quote.
The Dell PowerEdge R860 (16G) has 4 CPU sockets, up to 8TB DDR5 memory and 16 SFF drive bays. ICD Group lists 3,070 compatible parts for it in 6 component categories, led by Storage (2,698), Controllers (273) and Processors (39), with 163 distinct configurations. The parts listed are the component families ICD lists for the PowerEdge R860; part-level fit is confirmed on every quote.
Server Specifications
| Brand | Dell |
| Model | PowerEdge R860 |
| Generation | 16G |
| Type | Server |
| CPU Sockets | 4 |
| Maximum Memory | 8TB DDR5 |
| Drive Bays | 16 SFF |
| Lifecycle Status | Current |
| Processor Options | Up to 4x 4th Gen Intel Xeon Scalable, up to 60 cores each |
| Memory Configuration | 64 DDR5 DIMM slots, RDIMM 16TB max, 4800 MT/s |
| Drive Configurations | Up to 24x 2.5in SAS/SATA/NVMe + 8x E3.S options; rear bays |
| Power Supply Options | 1100W-2800W Titanium, 1400W/2400W Platinum; hot-swap redundant |
| Specification Source | Dell official documentation (verified 2026-07-02) |
Frequently Asked Questions

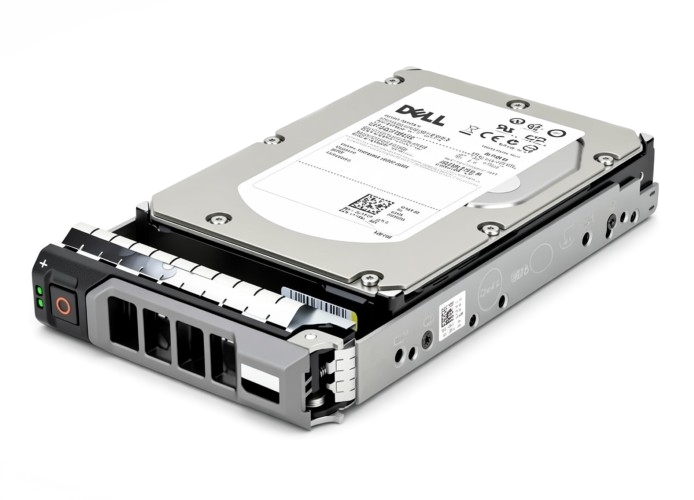

Storage for PowerEdge R860
100 storage configurations listed for the PowerEdge R860, 2,698 parts in total. Each row is one configuration ICD supplies; the part numbers are examples from that row.
| Capacity | Interface | Form Factor | Speed | Parts | Example part numbers |
|---|---|---|---|---|---|
| 1.2 TB | SAS | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 281 | 001M0D, 00KV02, 019FP0 |
| 600 GB | SAS | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 260 | 010DR3, 029V4, 03J10Y |
| 3.84 TB | SAS | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 231 | 003XGD, 01JV0K, 021CT4 |
| 300 GB | SAS | 2.5" Small Form Factor (SFF) | 15,000 RPM (15K) | 188 | 00RVDT, 01D94D, 0377CF |
| 1.92 TB | SAS | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 167 | 002X38, 0086DD, 00FYFW |
| 800 GB | SAS | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 161 | 00FRVY, 02P42R, 03FWXV |
| 1.8 TB | SAS | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 157 | 00J77H, 00VPTJ, 01GXN0 |
| 900 GB | SAS | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 146 | 01M1K4, 01X09G, 02RR9T |
| 600 GB | SAS | 2.5" Small Form Factor (SFF) | 15,000 RPM (15K) | 138 | 01W7HC, 01W95C, 0252H |
| 1.6 TB | SAS | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 115 | 014PN0, 04P9YK, 05HR3X |
| 960 GB | SAS | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 108 | 004RKT, 009JJC, 032T3C |
| 300 GB | SAS | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 80 | 0148J7, 029MMM, 02M5JK |
| 400 GB | SAS | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 78 | 003VVP, 00GRY6, 022RKC |
| 900 GB | SAS | 2.5" Small Form Factor (SFF) | 15,000 RPM (15K) | 74 | 01053F, 01M69V, 02J16V |
| 480 GB | SAS | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 64 | 005H78, 006VJ7, 03PR5C |
| 2.4 TB | — | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 43 | 010N35, 036YG1, 03G5K5 |
| 7.68 TB | SAS | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 42 | 0050N5, 04RNJR, 050N5 |
| 2.4 TB | SAS | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 31 | 09F0N8, 0GND9R, 0W9MNK |
| 200 GB | SAS | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 27 | 001Y7M, 01Y7M, 08YPYK |
| 1.8 TB | — | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 26 | 00WRRF, 0F66TR, 0F91TM |
| 146 GB | SAS | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 15 | 0CM318, 341-4732, 342-2015 |
| 146 GB | SAS | 2.5" Small Form Factor (SFF) | 15,000 RPM (15K) | 12 | 341-8972, 341-9875, 342-2035 |
| 500 GB | SAS | 2.5" Small Form Factor (SFF) | 7,200 RPM (7.2K) | 11 | 0D7MYF, 0K831N, 0NV0G9 |
| 73 GB | SAS | 2.5" Small Form Factor (SFF) | 15,000 RPM (15K) | 11 | 341-4820, G108N, HR044 |
+76 more storage configurations (232 parts) →
Controllers for PowerEdge R860
22 controllers configurations listed for the PowerEdge R860, 273 parts in total. Each row is one configuration ICD supplies; the part numbers are examples from that row.
| Controller | Interface | Speed | Parts | Example part numbers |
|---|---|---|---|---|
| Fibre Channel (FC) HBA | PCIe | 16 Gb/s | 127 | 013MJR, 01KK8W, 01KPGF |
| — | PCIe | — | 31 | 01NNXD, 02PHG9, 03KC27 |
| SAS / SATA HBA | — | — | 20 | 01HD39, 0T93GD, 0VYM4 |
| Fibre Channel (FC) HBA | PCIe | — | 19 | 050JV, 0GVF0M, 0RXNT1 |
| Fibre Channel (FC) HBA | — | 32 Gb/s | 16 | 403-BBLV, 403-BBLX, 403-BBMC |
| Fibre Channel (FC) HBA | — | 16 Gb/s | 9 | 403-BBLQ, 403-BBMB, 403-BBMH |
| SAS / SATA HBA | PCIe | — | 9 | 083DH4, 1KH9T, 2XVTC |
| PERC H965I RAID Controller | — | — | 8 | 03KWJN, 0GT7YG, 0WXXHY |
| Fibre Channel (FC) HBA | — | 64 Gb/s | 5 | 540-BDNO, 540-BDNS, 540-BDRP |
| RAID Controller | SAS | — | 5 | 6TFJ5, 8NX75, 9MHYN |
| Fibre Channel (FC) HBA | — | 8 Gb/s | 3 | 406-BBDS, 406-BBGR, 635X7 |
| PERC H965I RAID Controller | NVMe | — | 3 | 405-ABDM, 405-ABDN, W2C1K |
| RAID Controller | — | — | 3 | 4G20M, 5Y1HD, J6RYT |
| Fibre Channel (FC) HBA | PCIe | 8 Gb/s | 2 | RW9KF, VX60F |
| PERC H355 RAID Controller | SAS | — | 2 | 0TKK9K, 0VCV6T |
| PERC H355I RAID Controller | — | — | 2 | TKK9K, VCV6T |
| PERC H965E RAID Controller | — | — | 2 | 405-BBBT, VWHMH |
| Fibre Channel (FC) HBA | — | — | 1 | 73TM8 |
| Fibre Channel (FC) HBA | PCIe | 32 Gb/s | 1 | VPDGC |
| PERC H710 RAID Controller | — | — | 1 | 7VJMH |
| PERC H975I RAID Controller | NVMe | — | 1 | 2PG59 |
| RAID Controller | SAS | 12 Gb/s | 1 | F037K |
| Other controllers parts (no structured spec yet) | 2 | Browse all → | ||
Processors for PowerEdge R860
33 processors configurations listed for the PowerEdge R860, 39 parts in total. Each row is one configuration ICD supplies; the part numbers are examples from that row.
| Clock | Cores / TDP | Parts | Example part numbers |
|---|---|---|---|
| 2.0 GHz | 16 Cores, 150W TDP | 2 | 338-CHSL, 338-CLVY |
| 2.0 GHz | 52 Cores, 350W TDP | 2 | 338-CHCV, 338-CHPN |
| 2.1 GHz | 32 Cores, 225W TDP | 2 | 338-CKTF, SRMGN |
| 2.1 GHz | 48 Cores, 350W TDP | 2 | 338-CHDD, 338-CHOV |
| 2.5 GHz | — | 2 | RK389, SLARP |
| 2.8 GHz | 32 Cores, 300W TDP | 2 | 338-CKTD, 338-CPBT |
| 1.9 GHz | 24 Cores | 1 | SRMGY |
| 1.9 GHz | 64 Cores | 1 | SRN55 |
| 2.0 GHz | 12 Cores | 1 | SRMGE |
| 2.0 GHz | 16 Cores | 1 | SRMH2 |
| 2.0 GHz | 20 Cores | 1 | SRMGG |
| 2.0 GHz | 24 Cores | 1 | SRMGH |
| 2.0 GHz | 28 Cores | 1 | SRMGL |
| 2.0 GHz | 32 Cores | 1 | SRMGM |
| 2.0 GHz | 32 Cores, 205W TDP | 1 | 338-CLVZ |
| 2.0 GHz | 36 Cores | 1 | SRM7W |
| 2.0 GHz | 36 Cores, 300W TDP | 1 | 338-CBXW |
| 2.1 GHz | 32 Cores | 1 | SRM7A |
| 2.1 GHz | 32 Cores, 270W TDP | 1 | 338-CKYZ |
| 2.2 GHz | 32 Cores | 1 | SRMH3 |
| 2.4 GHz | 12 Cores | 1 | SRN60 |
| 2.4 GHz | 32 Cores | 1 | SRMGW |
| 2.4 GHz | 32 Cores, 250W TDP | 1 | 338-CLVV |
| 2.5 GHz | 16 Cores | 1 | SRMGF |
+9 more processors configurations (9 parts) →
Networking for PowerEdge R860
1 networking configuration listed for the PowerEdge R860, 34 parts in total. Each row is one configuration ICD supplies; the part numbers are examples from that row.
| Speed | Connector | Ports | Parts | Example part numbers |
|---|---|---|---|---|
| 25G Ethernet | SFP28 | Dual Port (2) | 34 | 00M95, 06WMMV, 20NJD |
Memory for PowerEdge R860
5 memory configurations listed for the PowerEdge R860, 22 parts in total. Each row is one configuration ICD supplies; the part numbers are examples from that row.
| Capacity | Speed | Type | Parts | Example part numbers |
|---|---|---|---|---|
| 64 GB | 4800 MHz | RDIMM ECC Registered | 6 | 370-AGZQ, 370-AGZR, 370-AHIB |
| 32 GB | 4800 MHz | RDIMM ECC Registered | 5 | 370-AGYZ, 370-AGZP, AC239378 |
| 128 GB | 4800 MHz | RDIMM ECC Registered | 4 | 370-AGRG, AC448843, AC449974 |
| 16 GB | 4800 MHz | RDIMM ECC Registered | 4 | 370-AGZN, 370-AGZO, AC239377 |
| 256 GB | 4800 MHz | RDIMM ECC Registered | 3 | 370-AHHF, 370-AHIE, 370-BBHY |
Power & Cooling for PowerEdge R860
2 power & cooling configurations listed for the PowerEdge R860, 4 parts in total. Each row is one configuration ICD supplies; the part numbers are examples from that row.
| Output | Type | Parts | Example part numbers |
|---|---|---|---|
| 2800W output | 80 PLUS Titanium | 2 | 08PMK, P56GH |
| 2800W output | 80 PLUS Titanium, Hot-Swap | 2 | 450-ALGN, 4G7PG |
Post-Warranty Support for PowerEdge R860
ICD Care+ TPM covers the PowerEdge R860 past OEM end-of-support: parts and on-site support at SLA levels set per contract, typically 40-60% less than OEM post-warranty support.
Learn About ICD Care+ →Frequently Asked Questions — PowerEdge R860
What memory is compatible with the PowerEdge R860?
The memory modules listed are the component families ICD lists for the PowerEdge R860; part-level fit is confirmed on every quote. Maximum capacity: 8TB DDR5. Module type, speed and rank are confirmed against your configuration on the quote.
Does ICD ship PowerEdge R860 parts to Egypt, UAE, KSA?
Yes. Egypt: same-day in Cairo Metro or 1-2 days. North Africa: 2-4 days. GCC (Saudi Arabia, UAE, Kuwait, Qatar, Bahrain, Oman) and Levant: 3-4 days. East Africa: 4-6 days. West Africa: 5-7 days. Southern Africa: 5-8 days. Europe: 3-5 days. North America: 5-7 days. Asia: 4-7 days. Express door-to-door from Cairo via DHL, Aramex or FedEx; customs clearance may add 1-3 days. Exact transit time is stated per quote. For NTRA-regulated networking parts bound for Egypt, the import route is stated per quote.
How do I get a compatibility-verified quote?
Send your part list or workload requirement via the quote form or WhatsApp +20 104 022 22 14. We reply within 24 hours with a USD quotation matched by part number; the lead time is stated on each quote.
Are ICD parts for the PowerEdge R860 new or refurbished?
Both, clearly labeled on every listing and quote: New, Renewed or Refurbished (tested). Every ICD part except consumables carries a warranty: 1 year included on drives, power supplies and other wear parts, 3 years included on CPUs, memory, networking and optics, and extendable up to 10 years.
