Best Parts for Cisco UCS C220 M6
Complete compatibility guide for the UCS C220 M6. 1 of the 217 parts listed are matched to the UCS C220 M6 by part number; the other 216 are the component families ICD lists for it. Part-level fit is confirmed on every quote.
The Cisco UCS C220 M6 has 2 CPU sockets, up to 4TB DDR4 memory and 10 SFF drive bays. ICD Group lists 217 compatible parts for it in 5 component categories, led by Storage (101), Memory (64) and Processors (29), with 93 distinct configurations. 1 of the 217 parts listed are matched to the UCS C220 M6 by part number; the other 216 are the component families ICD lists for it. Part-level fit is confirmed on every quote.
Server Specifications
| Brand | Cisco |
| Model | UCS C220 M6 |
| Generation | M6 |
| Type | Server |
| CPU Sockets | 2 |
| Maximum Memory | 4TB DDR4 |
| Drive Bays | 10 SFF |
| Lifecycle Status | End of sale |
| End of Sale | 2025-09-29 |
| OEM End of Support | 2030-09-30 (ICD Care+ TPM continues coverage) |
| Processor Options | 2 sockets (1 or 2) 3rd Gen Intel Xeon Scalable (Ice Lake), up to 40 cores per CPU (Platinum 8380 40C); Intel C621A chipset; 2 CPUs required for NVMe drives |
| Memory Configuration | 32 DIMM slots (16 per CPU), DDR4-3200 RDIMM/LRDIMM up to 128GB per DIMM; up to 4TB (32x128GB) or 10TB with 16x128GB DDR4 + 16x512GB Intel Optane PMem |
| Drive Configurations | 1U SFF, 10 front bays: UCSC-C220-M6S up to 10 SAS/SATA HDD/SSD with up to 4 NVMe in bays 1-4; UCSC-C220-M6N up to 10 NVMe only; boot-optimized RAID carrier with 2x M.2 SATA (UCS-M2-HWRAID); 8GB FlexMMC |
| Power Supply Options | Up to 2 hot-swap PSUs, 1+1 redundant: 1050W AC, 1050W DC, 1600W AC, 2300W AC |
| RAID Controllers | One internal controller at a time: SATA interposer (AHCI, up to 8 SATA, slots 1-8); Cisco 12G RAID controller (up to 10 SAS/SATA, RAID 0/1/5/6/10); Cisco 12G SAS HBA (JBOD/pass-through, up to 10 drives) |
| Networking Options | 2x 10Gbase-T LOM + 1GbE mgmt; mLOM: VIC 1467 quad 10/25G SFP28 (UCSC-M-V25), VIC 1477 dual 40/100G QSFP28 (UCSC-M-V100); PCIe: VIC 1455 quad 10/25G, VIC 1495 dual 40/100G; OCP-style 25G/100G NIC options (UCSC-O-N6CD25GF/N6CD100GF) |
| Specification Source | Cisco official documentation (verified 2026-07-02) |
Frequently Asked Questions
Storage for UCS C220 M6
50 storage configurations listed for the UCS C220 M6, 101 parts in total. Each row is one configuration ICD supplies; the part numbers are examples from that row.
| Capacity | Interface | Form Factor | Speed | Parts | Example part numbers |
|---|---|---|---|---|---|
| 15.3 TB | NVMe | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 5 | NVME4-1536, NVMEM6-W15300, NVMEQ-1536 |
| 3.2 TB | NVMe | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 5 | NVME4-3200, NVMEI4-I3200, NVMEM6-W3200 |
| 1.6 TB | NVMe | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 4 | NVME4-1600, NVMEI4-I1600, UCSC-NVMEHW-H1600 |

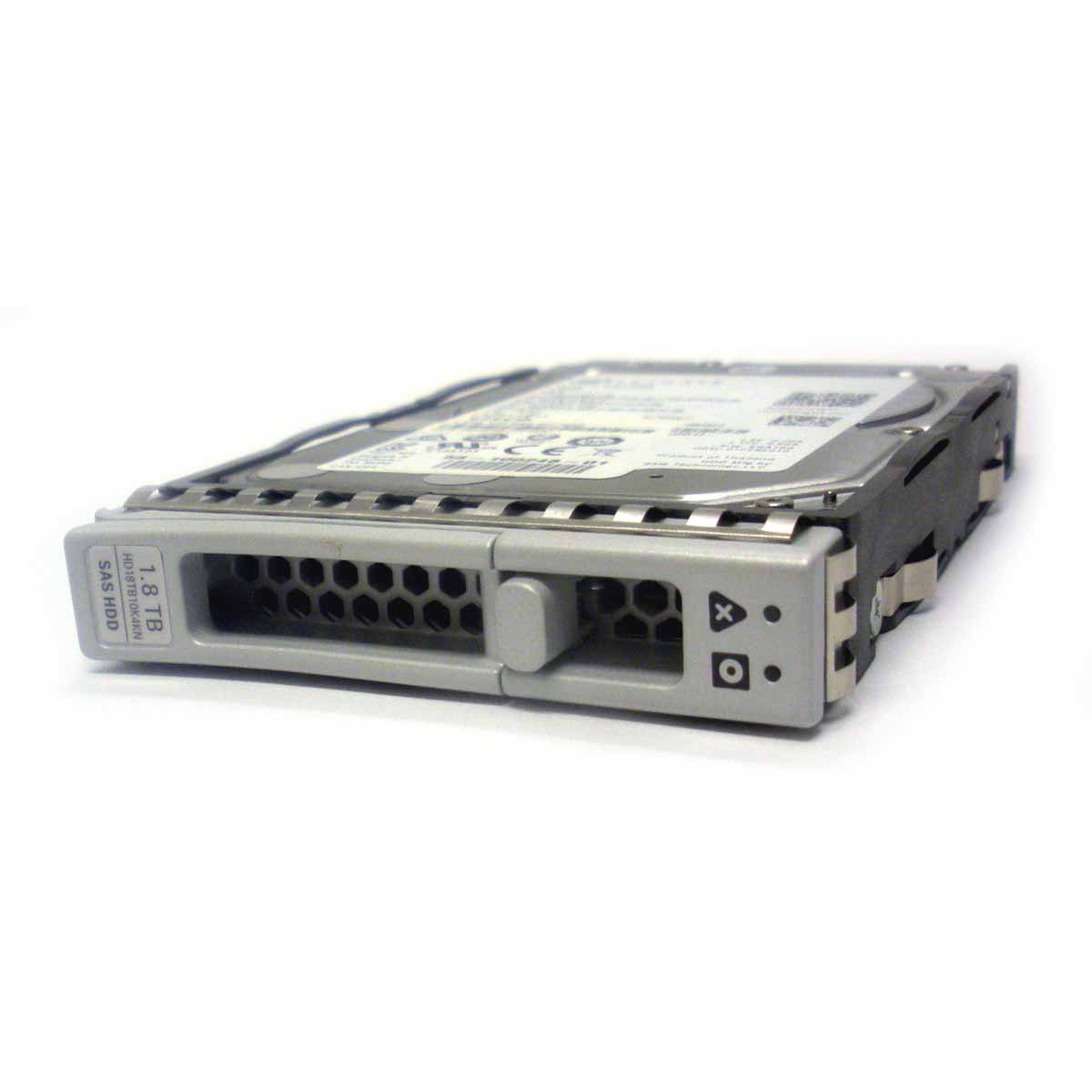

| 1.8 TB | SAS | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 4 | HD18TB10K4KN, HD18TB10K4KN=, HD18TB10K4KN1 |
| 1.9 TB | NVMe | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 4 | NVME4-1920, NVMEI4-I1920, UCS-NVME4-1920-D |
| 1.9 TB | SATA | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 4 | SD19T63X-EP, SD19TBM1X-EV, SD19TBM1XEV-D |
| 3.8 TB | SATA | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 4 | SD38T63X-EP, SD38TBM1X-EV, SD38TBM1XEV-D |
| 7.6 TB | NVMe | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 4 | NVME4-7680, NVMEM6-W7680, UCS-NVME4-7680-D |
| 3.8 TB | NVMe | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 3 | NVME4-3840, UCS-NVME4-3840-D, UCS-NVMEG4-M3840D |
| 300 GB | SAS | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 3 | HD300G10K12G, HD300G10K12N=, UCS-HD300G10K12N |
| 6.4 TB | NVMe | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 3 | NVME4-6400, NVMEI4-I6400, UCSC-NVMEHW-H6400 |
| 800 GB | NVMe | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 3 | NVMEXP-I800, SD800GBENK9, UCSC-NVMEHW-H800 |
| 960 GB | SATA | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 3 | SD960G63X-EP, SD960GBKS4-EV, SD960GBM1XEVD |
| 1.6 TB | SAS | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 2 | SD16T123X-EP, SD16T61X-EV |
| 1.92 TB | NVMe | — | Solid State (no rotational speed) | 2 | NVB1T9M2V9, NVMEG4-M1920-D |
| 2.4 TB | SAS | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 2 | HD24TB10K4KN, HD24TB10K4KN1 |
| 240 GB | SATA | M.2 | Solid State (no rotational speed) | 2 | M2-240GB, M2-I240GB-D |
| 480 GB | SATA | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 2 | SD480G63X-EP, SD480GBMS4-EV |
| 480 GB | SATA | M.2 | Solid State (no rotational speed) | 2 | M2-480G, M2-I480GB-D |
| 600 GB | SAS | 2.5" Small Form Factor (SFF) | 10,000 RPM (10K) | 2 | HD600G10K12G, HD600G10K12N |
| 7.68 TB | NVMe | — | Solid State (no rotational speed) | 2 | NVB7T6M2V9, NVMEG4-M7680-D |
| 960 GB | NVMe | — | Solid State (no rotational speed) | 2 | NVB960M2V9, NVMEG4-M960-D |
| 960 GB | SATA | M.2 | Solid State (no rotational speed) | 2 | M2-960G-D, M2-960GB |
| 1 TB | NVMe | 2.5" Small Form Factor (SFF) | Solid State (no rotational speed) | 1 | UCSC-NVMEHW-I1000 |
| Other storage parts (no structured spec yet) | 5 | Browse all → | |||
+26 more storage configurations (26 parts) →
Memory for UCS C220 M6
30 memory configurations listed for the UCS C220 M6, 64 parts in total. Each row is one configuration ICD supplies; the part numbers are examples from that row.
| Capacity | Speed | Type | Parts | Example part numbers |
|---|---|---|---|---|
| 16 GB | — | RDIMM | 8 | MR-1X162RY-A, MR-X16G1A, MR-X16G1RS-H |
| 32 GB | — | RDIMM | 8 | MR-X32G1RW, MR-X32G2A, MR-X32G2E1 |
| 64 GB | — | RDIMM | 4 | MR-X64G2E1, MR-X64G2RW, UCSX-MRX64G2RE1 |
| 128 GB | — | LRDIMM | 2 | ML-128G4RW, MR-X128G2RW |
| 128 GB | — | RDIMM | 2 | MR-X128G2E1, UCSX-MR128G4RE1 |
| 128 GB | — | RDIMM ECC Registered | 2 | MR128G4RE1, MR128G4RE3 |
| 128 GB | 5600 MHz | RDIMM ECC Registered | 2 | UCS-MR128G2RG3, UCSX-MR128G2RG3 |
| 16 GB | — | — | 2 | MEM-4400-4GU16G=, MEM-4400-4GU16G=-KIT |
| 16 GB | — | RDIMM ECC Registered | 2 | MRX16G1RE1, MRX16G1RE3 |
| 256 GB | — | RDIMM | 2 | MR-X256G2E1, UCSX-MR256G8RE1 |
| 32 GB | — | RDIMM ECC Registered | 2 | MRX32G1RE1, MRX32G1RE3 |
| 32 GB | 5600 MHz | RDIMM ECC Registered | 2 | UCS-MRX32G1RE3, UCSX-MRX32G1RE3 |
| 64 GB | — | LRDIMM | 2 | ML-X64G4RS-H, ML-X64G4RT-H |
| 64 GB | — | RDIMM ECC Registered | 2 | MRX64G2RE1, MRX64G2RE3 |
| 96 GB | 5600 MHz | RDIMM ECC Registered | 2 | UCS-MRX96G2RF3, UCSX-MRX96G2RF3 |
| 128 GB | 4800 MHz | RDIMM ECC Registered | 1 | UCS-MR128G4RE1 |
| 16 GB | 4800 MHz | RDIMM ECC Registered | 1 | UCS-MRX16G1RE1 |
| 16 GB | 5600 MHz | RDIMM ECC Registered | 1 | UCS-MRX16G1RE3 |
| 256 GB | — | LRDIMM | 1 | MR-X256G2RW |
| 256 GB | — | RDIMM ECC Registered | 1 | MR256G8RE1 |
| 32 GB | — | LRDIMM | 1 | ML-1X324RY-A |
| 32 GB | 4800 MHz | RDIMM ECC Registered | 1 | UCS-MRX32G1RE1 |
| 4 GB | — | — | 1 | A02 |
| 48 GB | — | RDIMM | 1 | MRX48G1RF3 |
| Other memory parts (no structured spec yet) | 5 | Browse all → | ||
+6 more memory configurations (6 parts) →
Processors for UCS C220 M6
12 processors configurations listed for the UCS C220 M6, 29 parts in total. Each row is one configuration ICD supplies; the part numbers are examples from that row.
| Clock | Cores / TDP | Parts | Example part numbers |
|---|---|---|---|
| 2.1 GHz | — | 5 | CPU-I4310, CPU-I5318N, CPU-I5318Y |
| 2.3 GHz | — | 4 | CPU-I4310T, CPU-I4316, CPU-I6314U |
| 2.4 GHz | — | 4 | CPU-I4314, CPU-I6336Y, CPU-I8351N |
| 2.2 GHz | — | 3 | CPU-I5320, CPU-I6330N, CPU-I6338N |
| 2.6 GHz | — | 3 | CPU-I6348, CPU-I8358, CPU-I8368Q |
| 2.0 GHz | — | 2 | CPU-I6330, CPU-I6338 |
| 2.8 GHz | — | 2 | CPU-I4309Y, CPU-I6342 |
| 2.9 GHz | — | 1 | CPU-I6326 |
| 3.0 GHz | — | 1 | CPU-I5317 |
| 3.1 GHz | — | 1 | CPU-I6346 |
| 3.2 GHz | — | 1 | CPU-I5315Y |
| 3.6 GHz | — | 1 | CPU-I6334 |
| Other processors parts (no structured spec yet) | 1 | Browse all → | |
Controllers for UCS C220 M6
1 controllers configuration listed for the UCS C220 M6, 4 parts in total. Each row is one configuration ICD supplies; the part numbers are examples from that row.
| Controller | Interface | Speed | Parts | Example part numbers |
|---|---|---|---|---|
| SAS / SATA HBA | — | — | 4 | 30-1568-01, UCSC-SAS-M5HD, UCSC-SAS-M6HD |
Post-Warranty Support for UCS C220 M6
ICD Care+ TPM covers the UCS C220 M6 past OEM end-of-support: parts and on-site support at SLA levels set per contract, typically 40-60% less than OEM post-warranty support.
Learn About ICD Care+ →Frequently Asked Questions — UCS C220 M6
What memory is compatible with the UCS C220 M6?
The memory modules listed are the component families ICD lists for the UCS C220 M6; part-level fit is confirmed on every quote. Maximum capacity: 4TB DDR4. Module type, speed and rank are confirmed against your configuration on the quote.
Does ICD ship UCS C220 M6 parts to Egypt, UAE, KSA?
Yes. Egypt: same-day in Cairo Metro or 1-2 days. North Africa: 2-4 days. GCC (Saudi Arabia, UAE, Kuwait, Qatar, Bahrain, Oman) and Levant: 3-4 days. East Africa: 4-6 days. West Africa: 5-7 days. Southern Africa: 5-8 days. Europe: 3-5 days. North America: 5-7 days. Asia: 4-7 days. Express door-to-door from Cairo via DHL, Aramex or FedEx; customs clearance may add 1-3 days. Exact transit time is stated per quote. For NTRA-regulated networking parts bound for Egypt, the import route is stated per quote.
Is the UCS C220 M6 still supported?
OEM support for the UCS C220 M6 ends in September 2030. ICD Care+ TPM continues hardware support and parts at SLA levels set per contract.
How do I get a compatibility-verified quote?
Send your part list or workload requirement via the quote form or WhatsApp +20 104 022 22 14. We reply within 24 hours with a USD quotation matched by part number; the lead time is stated on each quote.
Are ICD parts for the UCS C220 M6 new or refurbished?
Both, clearly labeled on every listing and quote: New, Renewed or Refurbished (tested). Every ICD part except consumables carries a warranty: 1 year included on drives, power supplies and other wear parts, 3 years included on CPUs, memory, networking and optics, and extendable up to 10 years.
